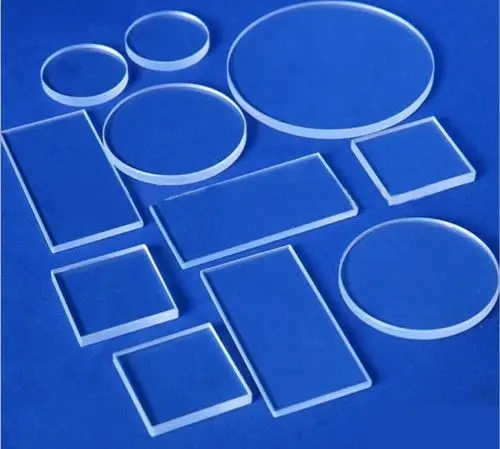

UV-grade Fused Silica Wafer

Offer 3"-8"  Fused Silica with customized
Availability:
Inquire Add to Basket

Product Description

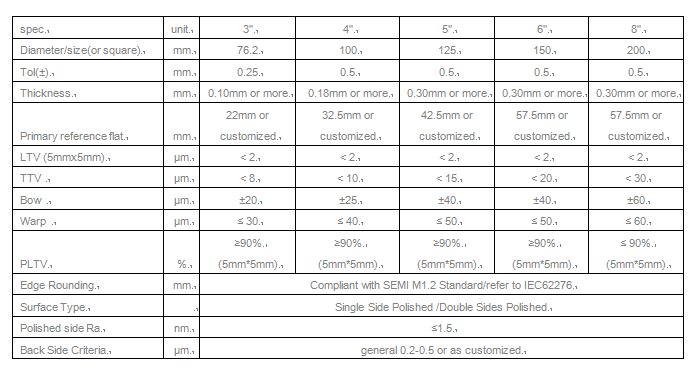

Typical Specifications

12160644_UV-gradeFusedSilicawafer


Basic materials characteristics

item

data

Density

2,20 g/cm3

Refractive Index (nd)

1,45846

Linear Thermal Coefficient of Expansionα

approx. 0,57 x 10-6/K

Transformation Temperature

893°C

Annealing Point (1013 dPa·s)

1042°C

Softening Point(107.6 dPa·s)

1585°C


The possible applications

  1. UV-quality quartz glass components

  2. Highest temperature applications

  3. Optical quartz glass window

  4. Optical quartz glass substrate

  5. Quartz glass cover slips

  6. Low thermal expansion SiO2 windows

  7. UV-measurement technology

  8. Quartz glass microscope slides

  9. Space technology
