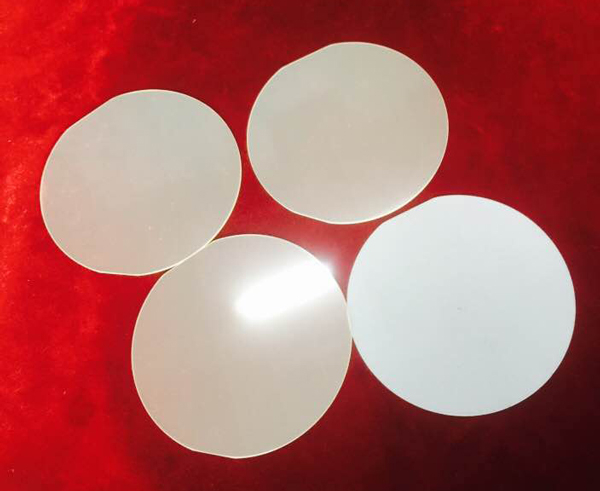

2-6 Inch SAW Grade LiNbO3(LN) Wafer

Lithium Niobate, has been widely used for surfaced acoustic devices, integrated optic devices, and new wavelength generation and refractive elements. The wide applications are due to its fundamental properties including high electro-optic and nonlinear optic coefficients, a wide transparency range, high electro-mechanical coupling coefficients, and excellent chemical and mechanical stability.
Availability:
Product Description

Specifications:


Cutting Angle

Deg.

X/Y/Z/Y36/Y42/Y48/X112/Y10/Y15/Y64/Y128/Y163, etc

Diameter/size

inch

2”- 6”

Tol(±)

mm

0.25-0.5

Thickness

mm

0.1 to 1

Primary reference flat

mm

22mm or customized

32.5mm or customized

LTV (5mmx5mm)

µm

< 2

TTV

µm

< 10

Bow

µm

±20

Warp

µm

≤ 30

PLTV

%

≥95%(5mm*5mm)

Orientation Flat


All available

Surface Type


Fine grinding/Single Side Polished /Double Sides Polished

Polished side Ra

nm

≤1

Back Side Criteria

µm

General is 0.2-0.5 or as customized

Edge Rounding

mm

Compliant with SEMI M1.2 Standard/refer to IEC62276


Crystal Physical Specifications:

Crystal symmetry

Trigonal, 3m

Lattice constant, A

a = 5.154       c = 13.783

Density, g/cm3

7.45

Melting point , °C

1650

Curie point , °C

605

Mohs hardness

6

Thermal expansion coefficient, 10-6/ °C

aa = 16   ac = 4

Thermal conductivity , mW/cm °C

46

Dielectric Constant (@ 100 KHz)

ea = 54    ec = 43

Refractive indices @ 633 nm

no = 2.175   ne = 2.180

Pyroelectric Coefficient:

-2.3 10-4 C/°C/m2


Applications:

1.        Lithium niobate is used extensively in the telecoms market:
a)        in mobile telephones and optical modulators. It is the material of choice for the manufacture of surface acoustic wave devices.
b) In laser frequency doubling, nonlinear optics, Pockels cells, optical parametric oscillators, Q-switching devices for lasers, other acousto-optic devices, optical switches for gigahertz frequencies
c)        It is an excellent material for manufacture of optical waveguides.

2.        It's also used in the making of optical spatial low-pass (anti-aliasing) filters.
